BALANCED_PARAMETRIC_DOUBLER

Published:2009/7/15 3:04:00 Author:Jessie | From:SeekIC

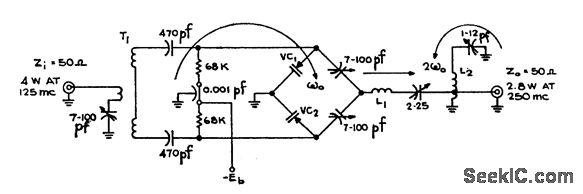

Handles twice the power of single-ended circuit using same varactor diode, while doubling 125-Mc input. Varactors VC are PSI type PC116.Efficiency is 70%. Transformer winding data is given in article.-R. D. Gromer, VHF Balanced Parametric Doubler, EEE, 11:8, p 30-31.
