BA1404 HI-FI Stereo FM Transmitter 88 - 108 MHz

Published:2012/11/9 20:33:00 Author:muriel | Keyword: BA1404 , HI-FI, Stereo , FM Transmitter , 88 - 108 MHz | From:SeekIC

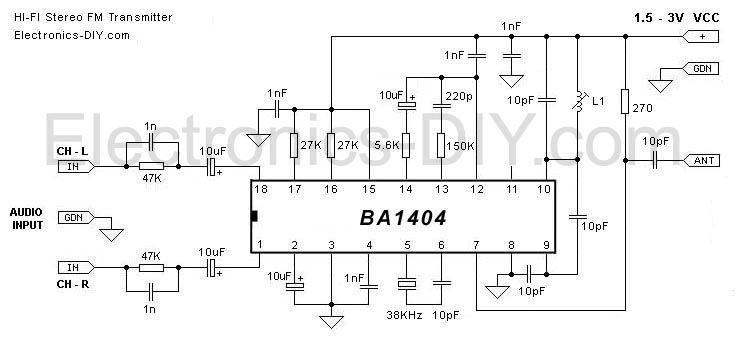

BA1404 Stereo FM Transmitter Components: BA1404 IC38KHz Crystal L1 - 3.5 Turns Variable Coil 1x PCB 1x 38KHz Crystal Oscillator 1x DIP-18 IC Socket 1x 3.5T Variable Precision RF Coil 1x 10uH Inductor 4x 10uF/50V Gold Audio Capacitors 4x 1nF Ceramic Capacitors 2x 1nF Mylar Capacitors 1x 220pF Ceramic Capacitor 5x 10pF Ceramic Capacitors 2x 47K 1% Metal Film Resistors 2x 27K 1% Metal Film Resistors 1x 150K 1% Metal Film Resistor 1x 5.6K 1% Metal Film Resistor 1x 270 1% Metal Film Resistor
