Antenna Tuning Unit

Published:2012/11/23 0:48:00 Author:muriel | Keyword: Antenna Tuning Unit | From:SeekIC

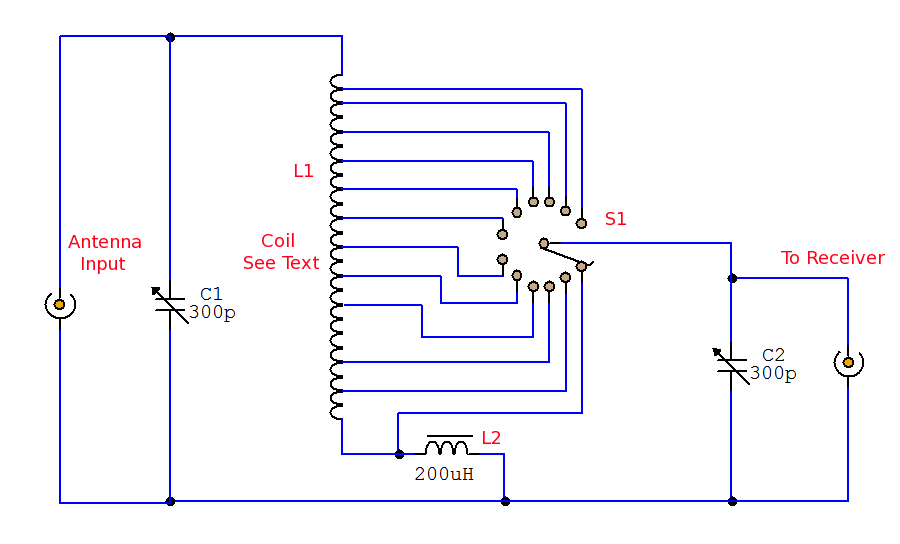

A simple passive (no power required) circuit to match an antenna to a radio receiver. This will be a useful addition to the short wave listener, but in addition a medium wave coil is almost used to tune the medium wave band.
