AUDIO_DETECTOR_WITH_NOISE_LIMITER_2

Published:2009/7/16 1:26:00 Author:Jessie | From:SeekIC

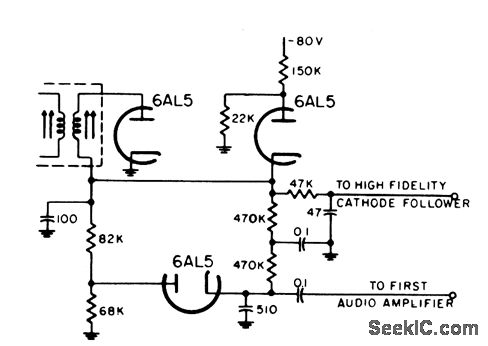

Uses shunt limiter in conjunction with series limiter, so noise pulses are prevented from operating agc circuit and thus desensitizing i-f amplifier of communication receiver.Broad-band cathode follower is connected to output of diode detector.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N12-1.
