AM_SUBSYSTEM

Published:2009/7/16 2:13:00 Author:Jessie | From:SeekIC

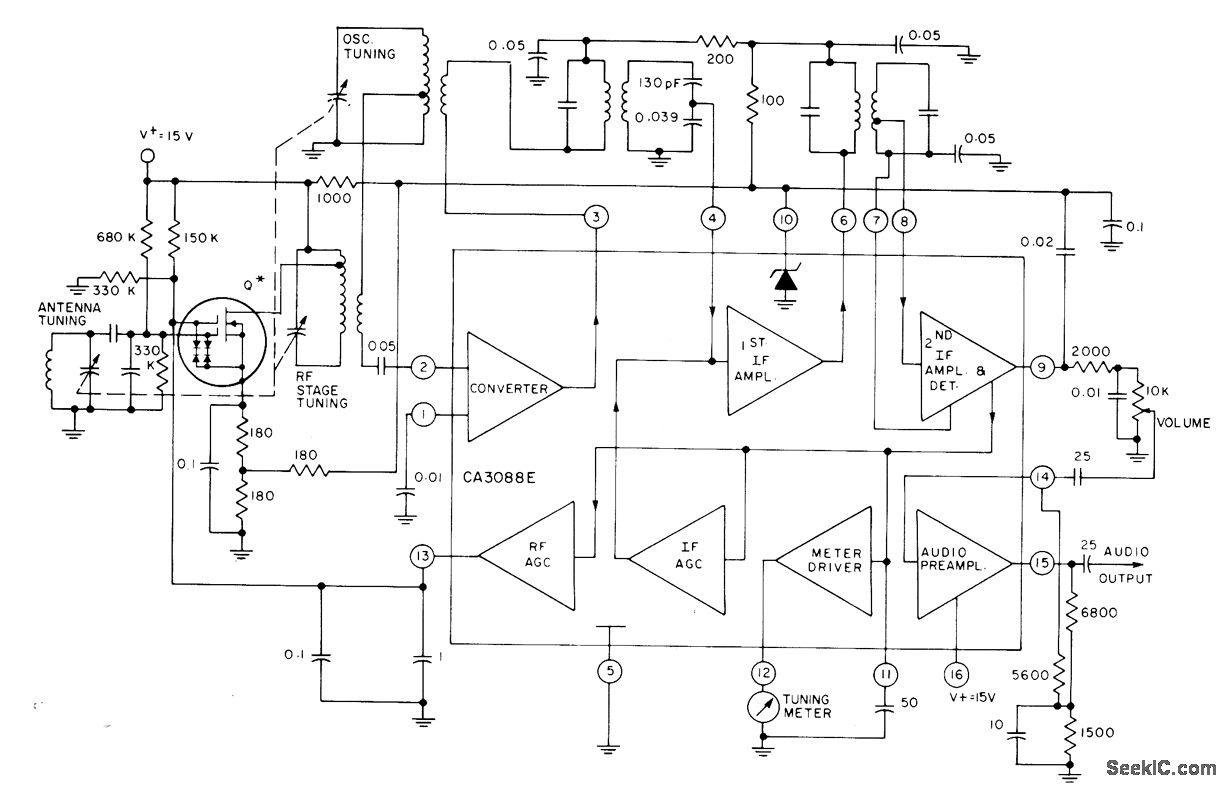

Single RCA CA3088E IC serves as AM converter, IF amplifier, detector, and preamp for AM broadcast or communication receiver. RF amplifier stage using RCA 40841 dual gate-protected MOSFET is optional. IC also provides internal AGC for first IF stage and delayed AGC for optional RF stage. Internal buffer stage can be used to drive tuning meter.- Linear Integrated Circuits and MOS/ FET's , RCA Solid State Division, Somerville, NJ, 1977, p 348-349.
