AM_BROADCAS_BAND_SIGNAL_GENERATOR

Published:2009/7/10 5:50:00 Author:May | From:SeekIC

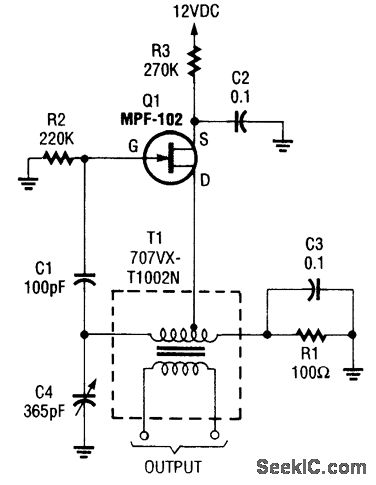

A Hartley oscillator usmg an MPF102 covers the band from 530 to 1600 kHz．T1 is a Toko P/N T1-707VXT1002N 217μhy transformer．
