9_MHz_TUNED_OUTPUT

Published:2009/7/16 4:15:00 Author:Jessie | From:SeekIC

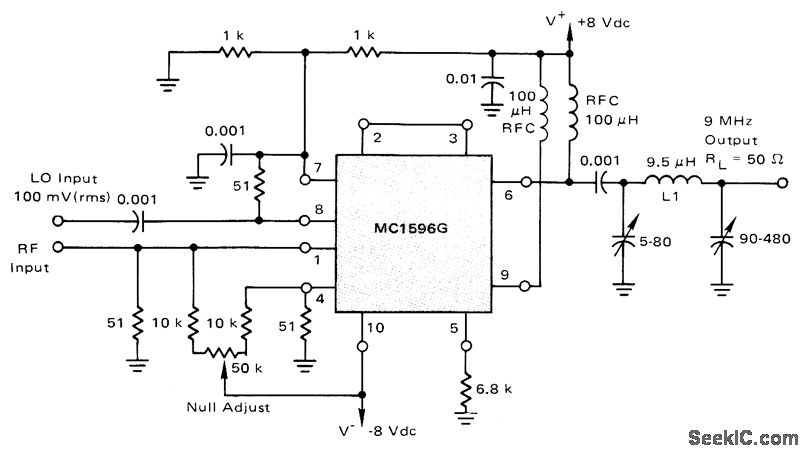

Motorola MC1596G balanced modulator connected as double-balanced mixer has 3-dB bandwidth of 450 kHz at output. Local oscillator signal LO is injected at upper input port and modulated signal of about 15 VRMS maximum at lower input port. Conversion gain is 13 dB for 30-MHz input and 39-MHz LO.-R. Hejhall, MC1596 Balanced Modulator, Motorola, Phoenix, AZ, 1975, AN-531, p7.
