90_900Hz_SINE_SQUARE_TRIANGGLE_

Published:2009/7/6 23:22:00 Author:May | From:SeekIC

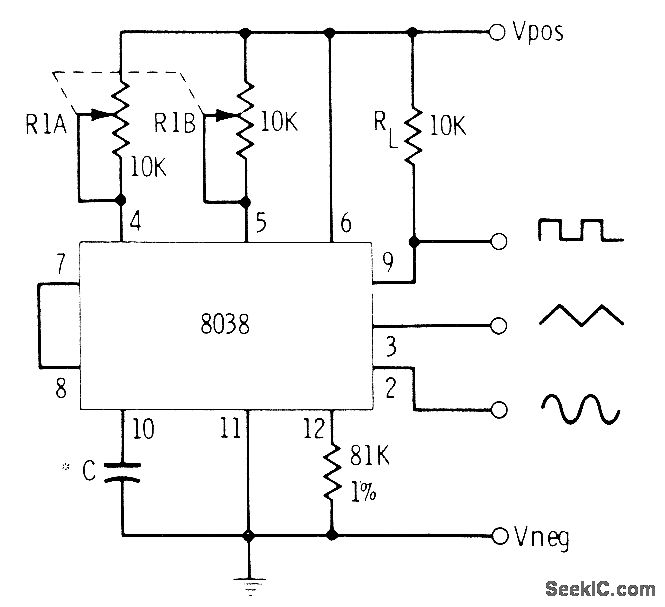

Ganged 10K dual pot covers range when C is 0.25 μF for 8038CC waveform generator. Other values of C (from 0.005,μF to 2.2 μF) give different frequency langes between 10 Hz and 50 kHz. Linearity of waveforms depends on tracking precision of dual pot.-C. D. Rakes, Integrated Circuit Projects, Howard W. Sams, lndianapolis, IN, 1975, p 116-120.
