8 binary counter circuit

Published:2011/6/5 3:23:00 Author:John | Keyword: 8 binary counter | From:SeekIC

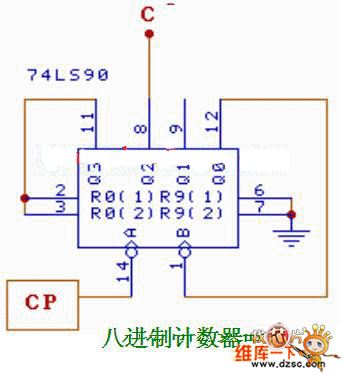

The number of two or more required to connect with cascaded 74LS90 chip. When the low chip reaches the full count, the highest point of the low chip low would be regarded as binary. And such would be sent to the CP end of a high chip.
