6-nary counter( achieved by T4290 setting method)

Published:2011/6/5 9:38:00 Author:John | Keyword: 6-nary counter | From:SeekIC

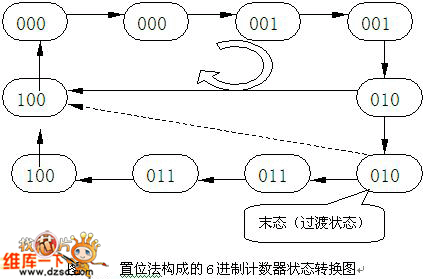

Referring to this problem, first of all, the concept of the counter should be extended. It is not necessary to start counting from state 0. It can start from any state (initial value) and experience N valid count state. Then it would count back to the initial value to form a count cycle. Such is also available to constitute the N nary counter. With setting method, N nary counter starts from the set value and is in the original count cycle. When set side is invalid, it cycles according to the original counting order. When set side is effective, original counting order is forced to disconnect. It comes back to the initial value (set value) for re-starting the next counting cycle.
