60_Hz_SQUARE_WAVE_GENERATOR

Published:2009/6/18 23:30:00 Author:May | From:SeekIC

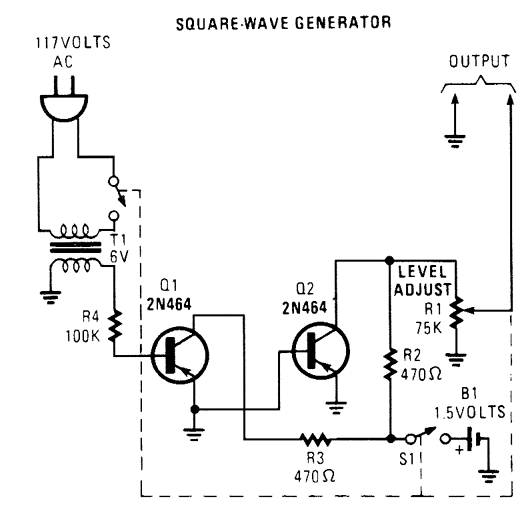

This generator circuit uses an overdriven amplifier to produce a 60-Hz square wave from the 60-Hz ac line. The circuit can be used in lineoperated applications as a clock source.
