60_Hz_CLOCK_PULSE_GENERATOR

Published:2009/7/6 5:42:00 Author:May | From:SeekIC

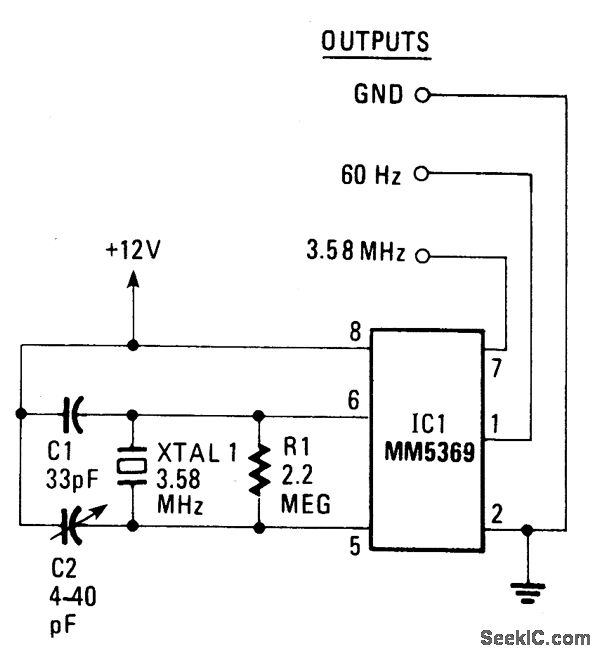

The circuit provides a clean, stable square wave and it will operate on anywhere from 6 to 15 volts. The IC and color-burst crystal are the kind used in TV receivers. The 3.58 MHz output makes a handy marker signal for shortwave bands.
