60_420_CPS_FREQUENCY_SEPTUPLER

Published:2009/7/15 2:43:00 Author:Jessie | From:SeekIC

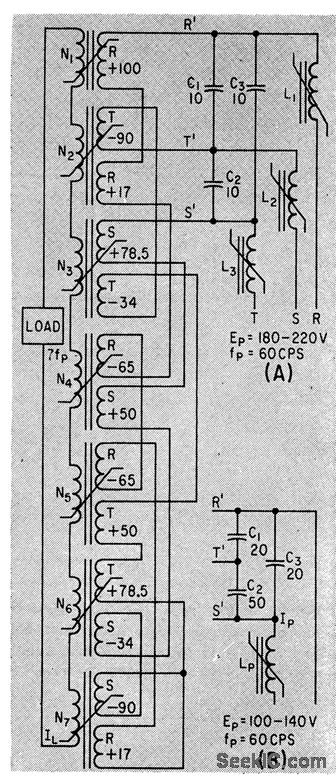

Seven saturable-core transformers, with series-star connected multiple primary windings and series-aiding secondaries, serve as static frequency multipliers delivering 40 w at 420 cps. Input may be three-phase (A) or single phase (B).-W. A. Geyger, Frequency Septupler Provides Stable 420-Cps Voltage, Electronics, 36:18, p 58-61.,
