50_MHz_40_W_transmitter_125_V_supply

Published:2009/7/24 2:47:00 Author:Jessie | From:SeekIC

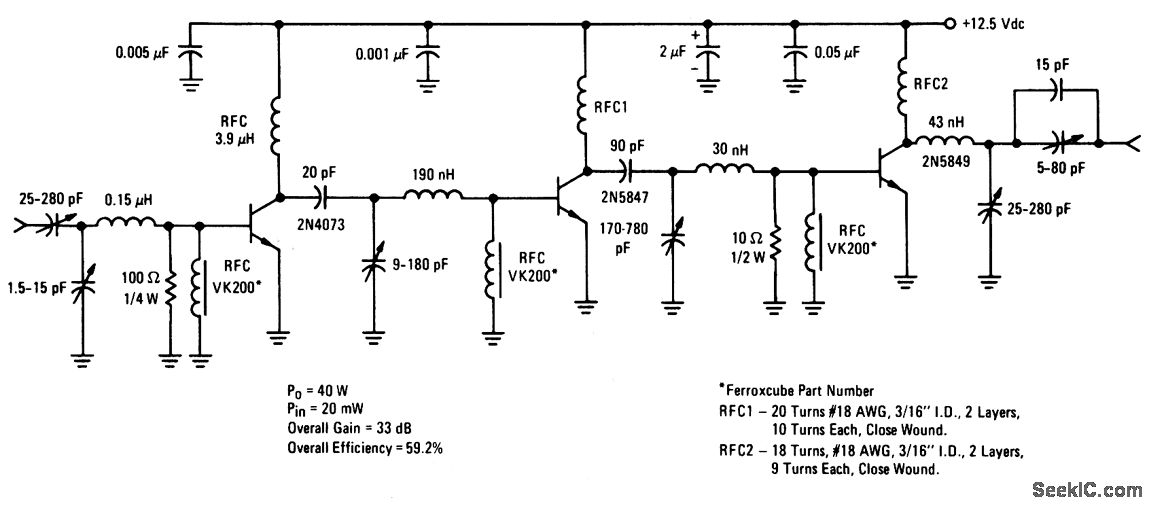

This circuit provides 40 W of output power with 20-mW input power in the 50-MHz band.
