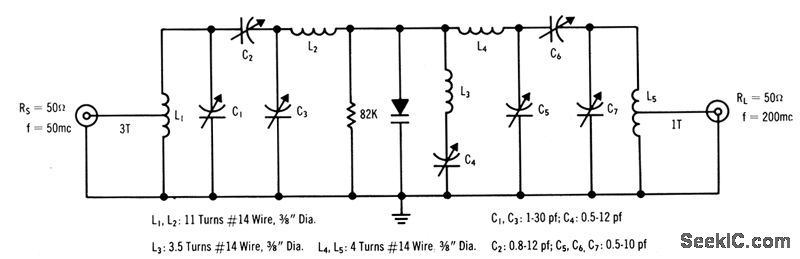

50_MC_TO_200_MC_VARACTOR_QUADRUPLER

Published:2009/7/15 2:51:00 Author:Jessie | From:SeekIC

Uses 1N4386 varactor capable of handling 50 w input power up to 300 Mc. Gives efficiencies up to 70%.-G. Schaffner, High Power Varactor Diodes, Motorola Application Note AN-147, Apr. 1964.
