50_MC_TO_100_MC_PUSH_PUSH_DOUBLER

Published:2009/7/15 2:53:00 Author:Jessie | From:SeekIC

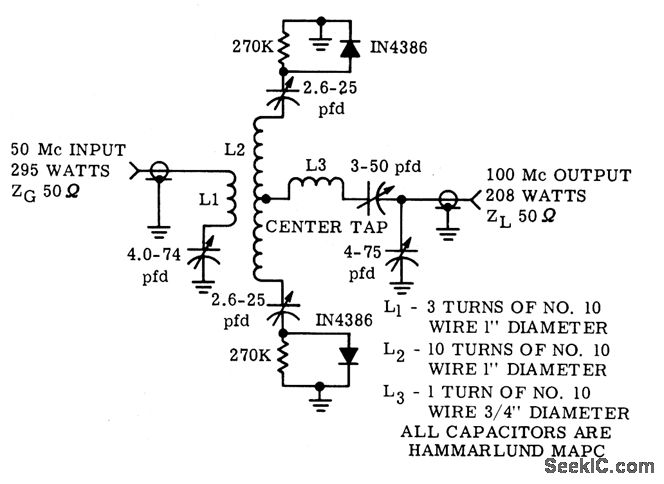

Two 1N4386 varactors are connected in phrase opposition to input signal and parallel to common load at even harmonic signal, to give action comparable to push-push circuit. Power-handling capacity is twice that of single varactor, with added benefit of odd-harmonic suppression.-G. Schaffner and J. Cochran, Varactor Diodes and Circuits for High Power Output and Linear Response, Motorola Application Note AN-191, Aug. 1965.
