50_KC_SAWTOOTH

Published:2009/7/23 22:54:00 Author:Jessie | From:SeekIC

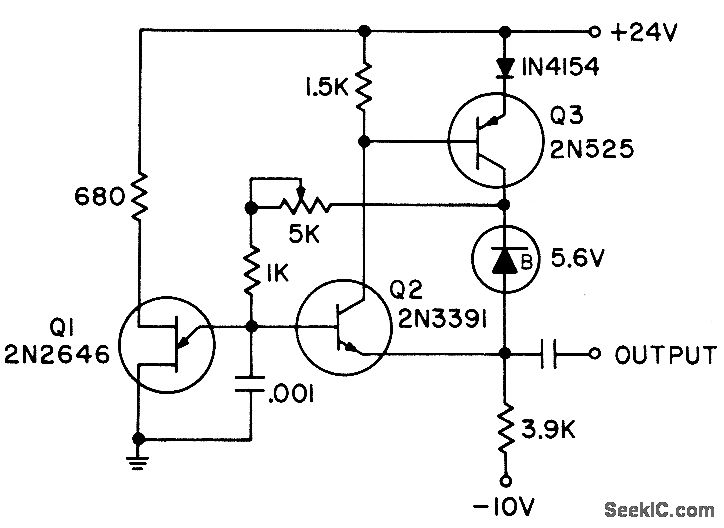

Uses bootstrap charging circuit, with constant voltage maintained across charging resistor by zener diode and emitter-follower amplifier Q3, so capacitor charging current is constant over complete cycle.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 319.
