500mW FM / VHF Transmitter Amplifier / Booster

Published:2012/11/9 20:34:00 Author:muriel | Keyword: 500mW , FM / VHF , Transmitter , Amplifier , Booster | From:SeekIC

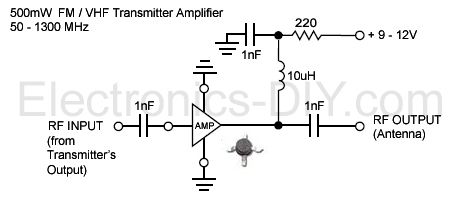

You can easily boost output power and range of BA1404 FM Transmitter by adding this simple high performance 500mW amplifier / booster. The amplifier chip is an integrated circuit containing multiple transistor stages and all other parts conveniently within a single small package. Boosting BA1404 FM transmitter's power has never been easier and the output signal can also directly drive 2N4427 or 2N3886 transistors for 1W or 5W of RF output power.
