500_MC_TO_4000_MC_1_STEP_MULTIPLIER

Published:2009/7/15 2:56:00 Author:Jessie | From:SeekIC

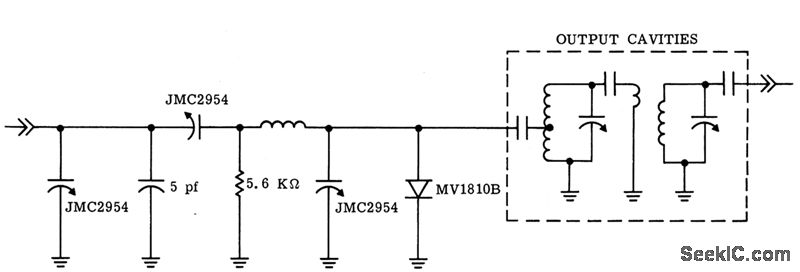

Combines both lumped and coaxial cavity techniques with varctctor to serve as octupler. Coupling from varctctor to first cavity must be exceedingly tight.-G. Schaffner, Varactor Multipliers Provide High Output-Power Above 6 GHz, Motorola Application Note AN.213, Dec. 1965.
