455_kHz_AM_IF_SIGNAL_GENERATOR

Published:2009/7/10 5:36:00 Author:May | From:SeekIC

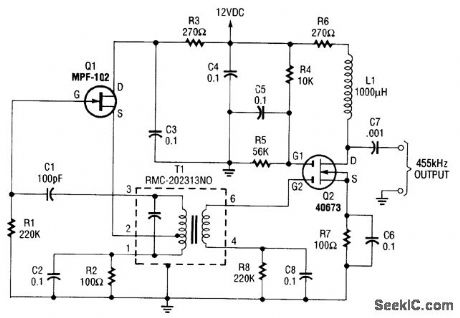

An MPF102 FET oscillator drives a dual-gate MOSFET buffer.The MPF102is configured as aHartley oscillator.If desired,an audio voltage can be coupled to the junction of R4,R5,and CS with anextra coupling capacitor(≈1μF) to AM modulate the signal.T1＝Toko P/N RMC-202313NO.
