450_MHz_PREAMP

Published:2009/7/16 4:14:00 Author:Jessie | From:SeekIC

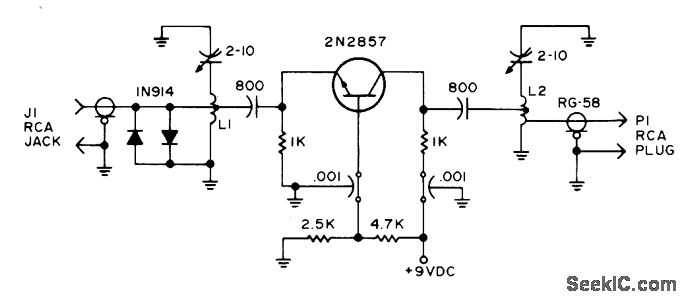

Provides up to 10-dB extra gain for older tube-type 450-MHz receivers. Gives significant improvement in receiver sensitivity and quieting. Use of trough-line inductors simplifies construction. 1N914 diodes in parallel at input jack protect transistor from burnout by nearby transmitter. L1 and L2 are made from 1/4-inch diameter copper tubing, 8.6 cm long. Article covers construction and operation.-C. Klinert, Easy Preamp for 450 MHz, 73 Magazine, May 1973, p 33 and 36-38.
