40_W_AT_50_MC

Published:2009/7/21 7:50:00 Author:Jessie | From:SeekIC

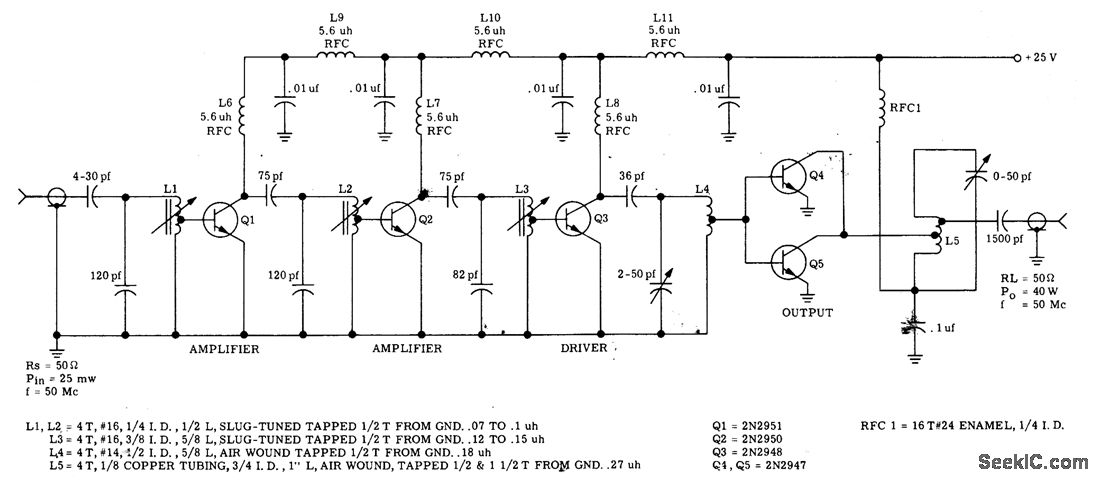

Can be used with phase-modulated oscillator as drive source or with crystal oscillator for straight cw operation. Grounded emitter tonus m driver Q3 and power amplifier should be as short as possible to prevent degeneration.-R. Brubaker, A Solid-State Transmitter with 40 Watts Output at 50 MHz, Motorola Application Note AN-172, Dec. 1965.
