40_275_MHz_BROADBAND_VMOS

Published:2009/7/16 0:12:00 Author:Jessie | From:SeekIC

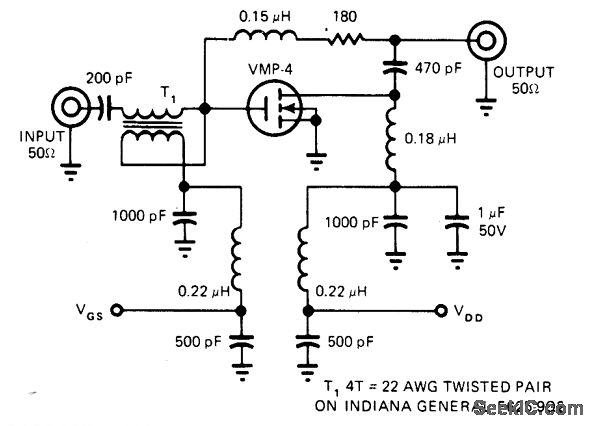

Response is flat within 1 dB over entire frequency range for 12-dB output. Circuit requires no initial adjustments and cannot be damaged by mismatched loads. Designed primarily for communication applications. Uses Siliconix VMP-4 vertical MOS power transistor.-E. Oxner, Will VMOS Power Transistor. - E. Oxner, Will VMOS Power Transistor Replace Bipolars in HF Systems? , EDN Magazine, June 20, 1977, p 71-75.
