3_KC_SCR_TRIGGER

Published:2009/7/16 5:25:00 Author:Jessie | From:SeekIC

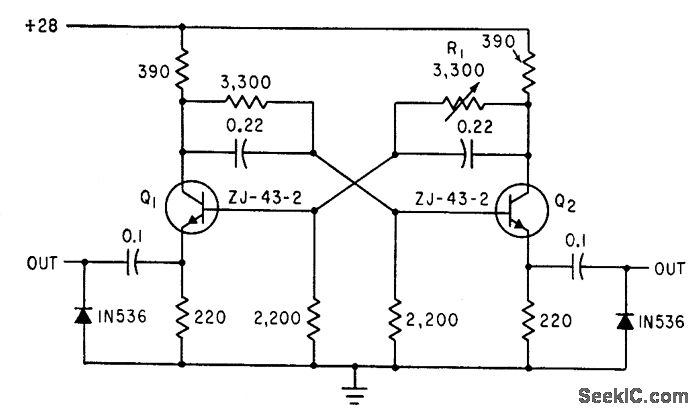

Two outputs from mvbr give alternating trigger pulses to each rectifier. R1 is adjusted for symmetrical operation.-D. V. Jones, Turn-Off Circuits for Controlled Rectifiers, Electronics, 33:32, p 52-55.
