3-1 Pulse Frequency Dividing Circuit

Published:2011/7/21 0:39:00 Author:Joyce | Keyword: 3-1, Pulse Frequency , Dividing | From:SeekIC

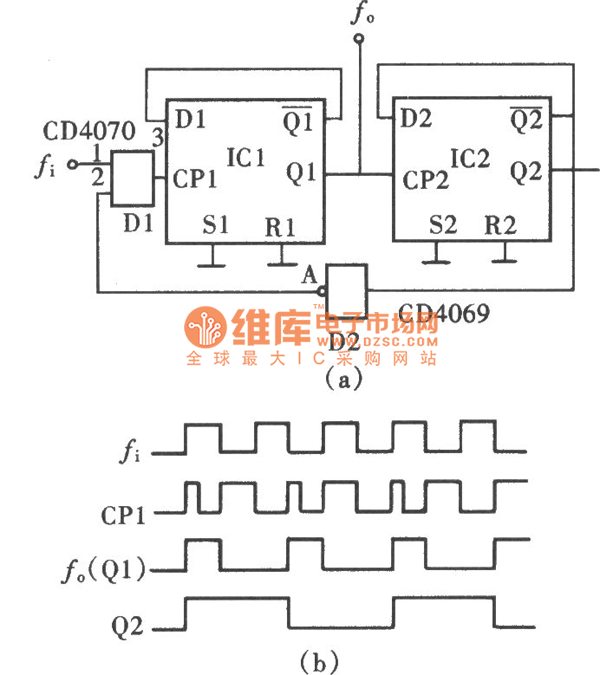

In digital circuits, sometimes a frequency dividing circuit is needed to subtract a few pluses from an input pulse. Appropriate composition of CD4013 and feedback gate can make almost any circuit combination of pulse subtraction. As shown in the figure is a 3-1 pulse frequency dividing circuit composed of CD4013.
