30_NSEC_5000_V_30_AMP_PULSES

Published:2009/7/16 2:57:00 Author:Jessie | From:SeekIC

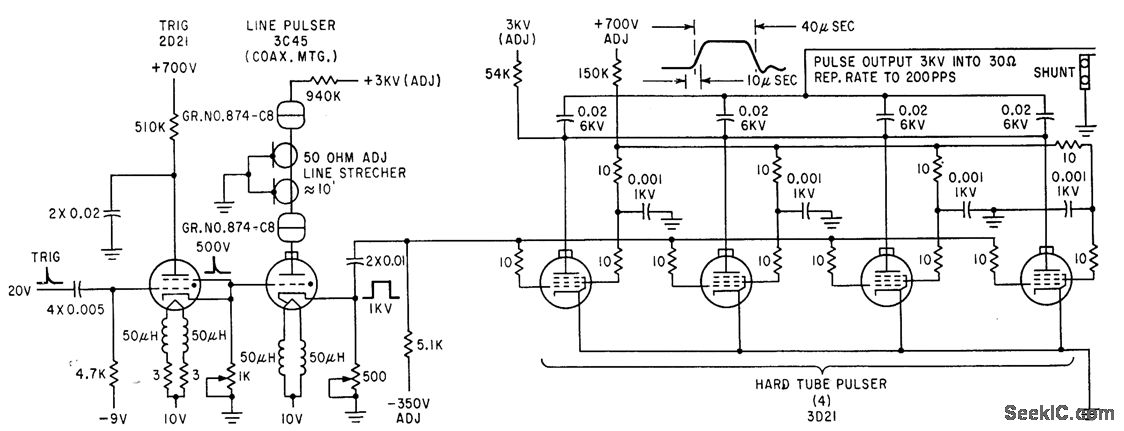

Used for testing magnetic materials at narrow pulse widths. Four hard tubes in parallel drive test cores with 0.1 megawatt peak power and give some degree of regulation during pulsing.-G. A. Reeser, How Magnetic Materials Behave at Nanosecond Pulse Widths, Electronics, 34:36, p 72-75.
