2185_MC_MARINE_BAND_TRANSMITTER

Published:2009/7/21 7:48:00 Author:Jessie | From:SeekIC

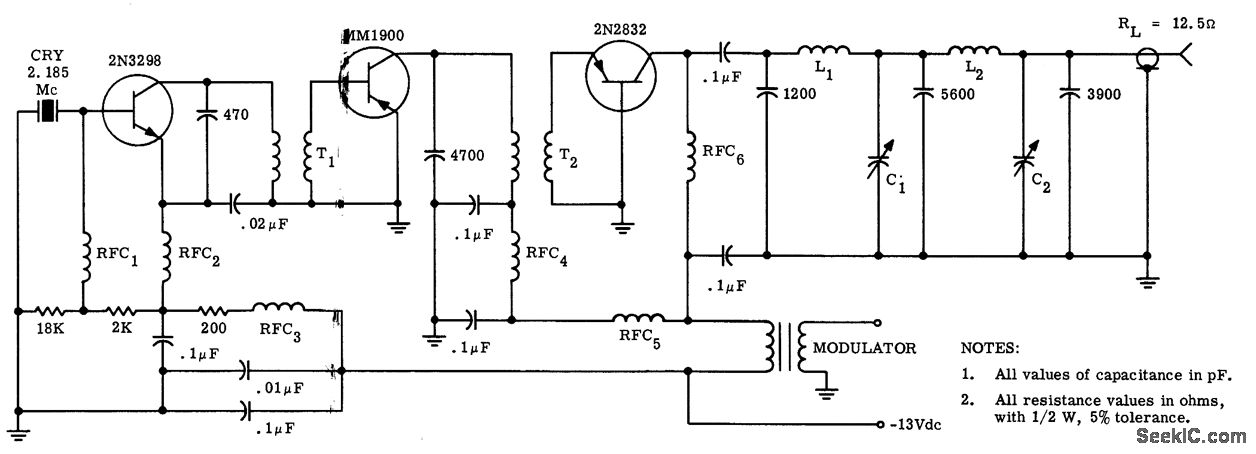

Grounded-base Colpitts oscillator uses series-mode crystal with driver and output stage. Current drain is only 1.5 amp from storage battery. No converter is required. Output is 13-w rms carrier.-R. J. Brubaker, An All. Solid-State Marine Band Transmitter, Motorola Application Note AN-156, Feb. 1966.
