20_KC_TRIGGER_GENERATOR

Published:2009/7/23 21:09:00 Author:Jessie | From:SeekIC

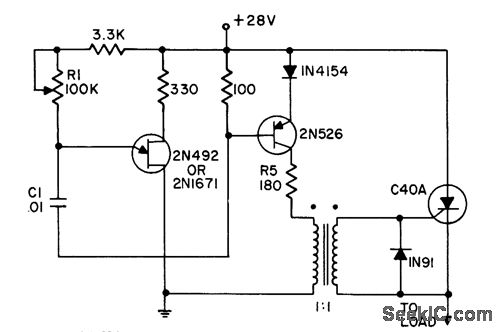

Uses ujt to drive 2N526 transistor from cutoff to saturation. Since energy in C1 is not used to trigger ser, small capacitor can be used, thereby increasing operating frequency limit.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 333.
