200_MHz_NEUTRALIZED

Published:2009/7/16 2:47:00 Author:Jessie | From:SeekIC

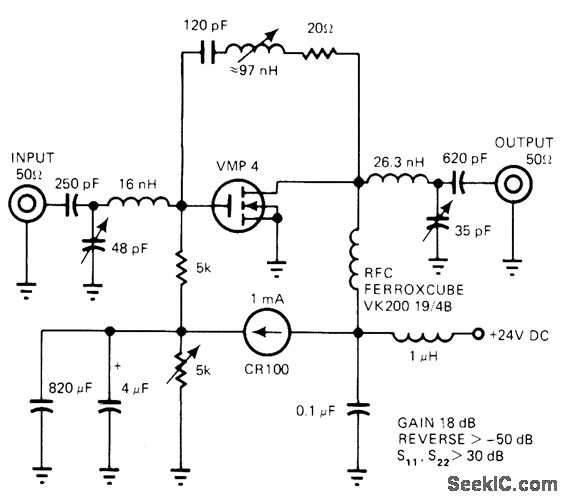

Provides 18.2-dB gain and -50 dB reverse isolation for communication applications. Noise figure is low. Uses Siliconix VMP-4 vertical MOS power transistor.-E. Oxner, Will VMOS Power Transistors Replace Bipolars in HF Systems?. EDN Magazine, June 20, 1977, p 71-75.
