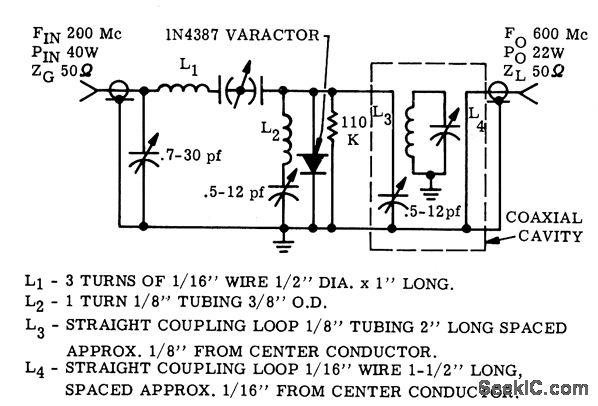

200_MC_TO_600_MC_HARMONIC_TRIPLER

Published:2009/7/15 2:55:00 Author:Jessie | From:SeekIC

Uses single varactor to give 20 w output from 40 w input.-G. Schaffner and J. Cochran, Varactor Diodes and Circuits for High Power Output and Linear Response, Motorola Application Note AN-191, Aug. 1965.
