1kHz oscillating circuit

Published:2011/6/13 7:49:00 Author:Christina | Keyword: 1kHz, oscillating circuit | From:SeekIC

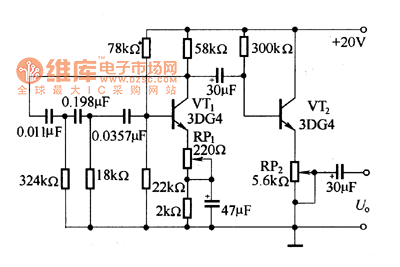

As the figure shows, the oscillating circuit is composed of three RC phase shifting networks with the impedances reduce in turn, the oscillation frequency is 1kHz, the output amplitude is 6V. By adjusting RP1, you can improve the waveform distortion. The oscillation signal is output by the emitter follower which is composed of the VT2. Figure The 1kHz oscillation circuit
