1 to 9 pulses select circuit (CD4017)

Published:2011/7/19 22:13:00 Author:zj | Keyword: 1 to 9 pulses select | From:SeekIC

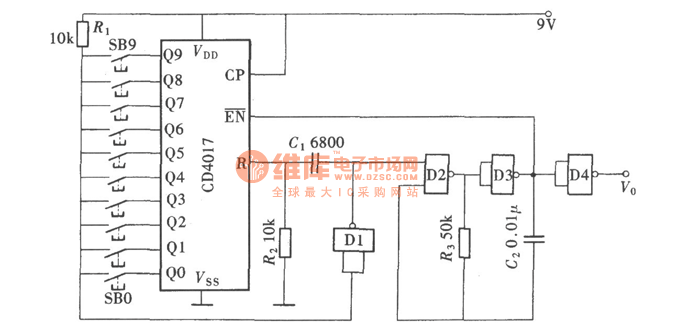

If we want a select multiple pulse, we can adopt the following circuit. You can arbitrarily select pulse in the 1 to 9 range by pressing a button. Its circuit is shown in figure.
