1_W_AT_170_MC

Published:2009/7/21 7:04:00 Author:Jessie | From:SeekIC

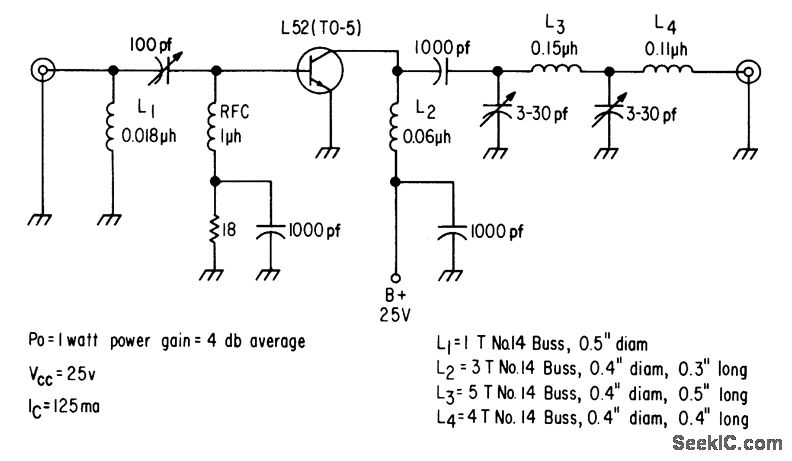

Single L52 feeds 1 w to 50-ohm antenna through pi-L network. Power gain is 4 db and efficiency is 30% for class C operation.-Texas Instruments Inc., Solid.State Communications, McGraw-Hill, N.Y., 1966, p 323.
