1_MHz_oscillator_using_the_MC1553_video_amplifier

Published:2009/7/20 23:06:00 Author:Jessie | From:SeekIC

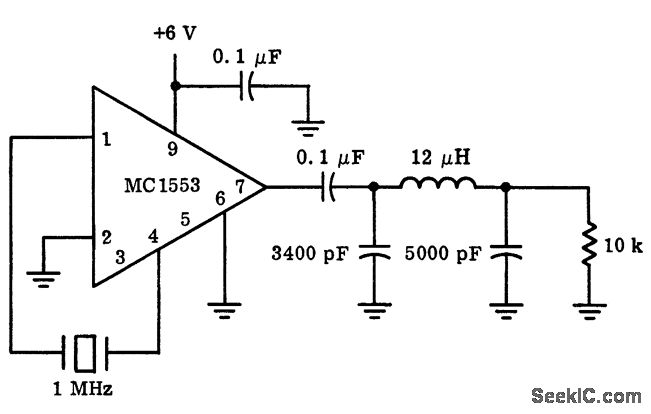

1 MHz oscillator using the MC1553 video amplifier (courtesy Motorola Semiconductor Products Inc.).
