16_BIT_WORD_GENERATOR

Published:2009/7/24 2:34:00 Author:Jessie | From:SeekIC

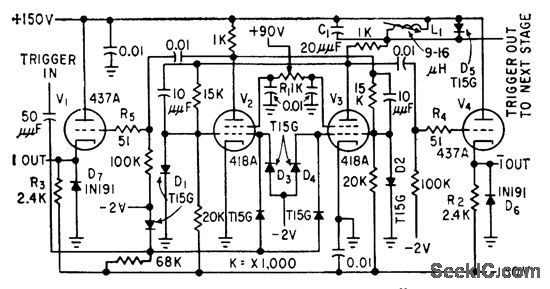

Provides all possible 16-bit serial binary words at 10-Mc rate, to simulate expected input of high-speed computer circuits. Four identical binary stages are used in word generator. Speed is derived from high-transconductance tetrodes.-R. G. Norquist, Testing High-Speed Digital Computer Circuits, Electronics, 32:29, p 50-51.
