12-nary counter circuit

Published:2011/6/5 10:16:00 Author:John | Keyword: 12-nary counter | From:SeekIC

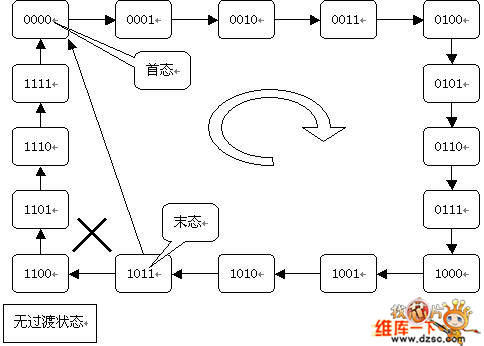

In the integrated counter with synchronous resetting performance, reset method (synchronous reset method) is used. It is different from the integrated counter with asynchronous reset function. The reset method used is called asynchronous reset method. This is determined by the difference on the actions of a synchronous reset and asynchronous reset function. According to synchronous reset function, when the reset terminal is active and is not able to immediately reset, the CP valid edge must be triggered for reset. Therefore, N-nary counter composed of the integrated counter with synchronous reset function does not have the transition state.
