1296_MHz

Published:2009/7/21 2:38:00 Author:Jessie | From:SeekIC

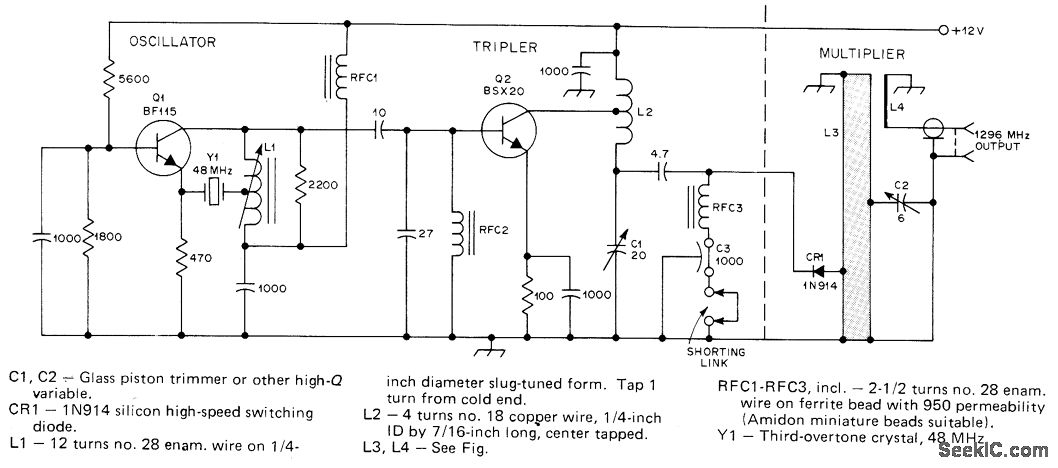

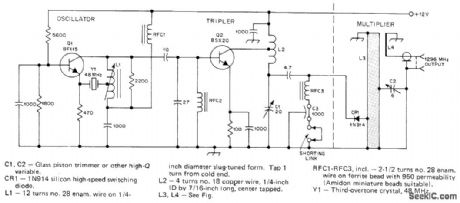

Can be used as signal source for receiver adjustment and antenna testing, or as minibeacon on 1296 MHz. 48-MHz oscillator and clipper feed 144 MHz to 1N914 diode which multiplies frequency by 9. Half-wavelength strip line tank L3-C2 rejects other harmonics. Shorting link below RFC3 is removed for measuring code Current.-A 1296-MHz Signal Source, QST, March 1977, p 26.
