10_W_AT_50_MC

Published:2009/7/21 7:06:00 Author:Jessie | From:SeekIC

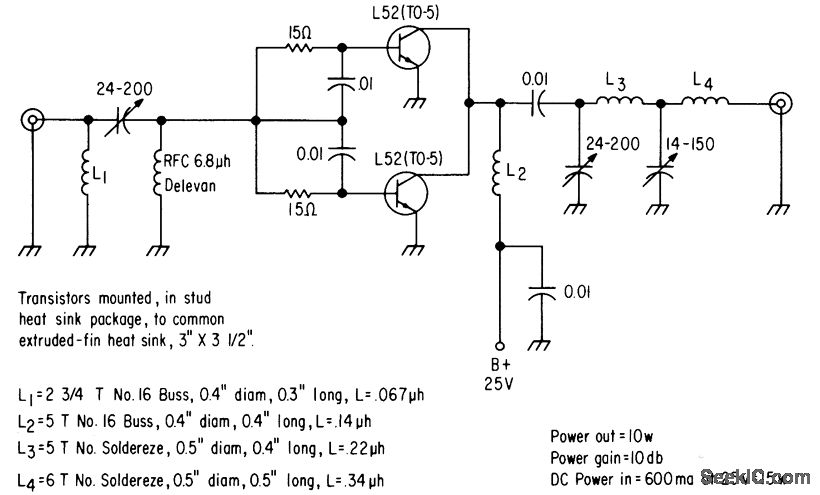

Two L52's in parallel provide 10 w output power with 10 db gain. Separate biasing resistors are used in base circuits to balance operating currents. Input and output impedances are both 50 ohms, and overall efficiency is 65%.-Texos Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 323.
