107_MHz_SWEEP_GENERATOR

Published:2009/6/26 2:22:00 Author:May | From:SeekIC

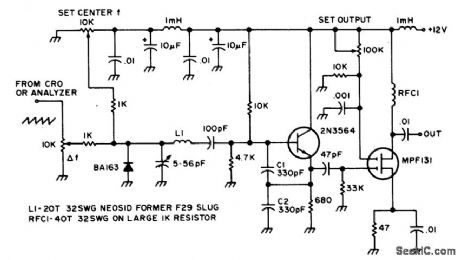

This circuit is used to observe the response of an if amp or a filter. It can be used with an oscilloscope or，for more dynamic range，with a spectrum analyzer.
