100__to_300_MHz_frequency_tripler

Published:2009/7/23 22:26:00 Author:Jessie | From:SeekIC

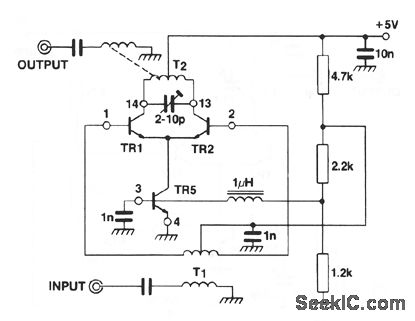

This circuit shows an SL2365 transistor array (Fig. 2-35B) connected as a frequency tripler, with a gain of -40 dB, an input-frequency rejection of 30 dB, and second-harmonic rejection of 28 dB.
