02_TO_18_CPS

Published:2009/7/23 22:38:00 Author:Jessie | From:SeekIC

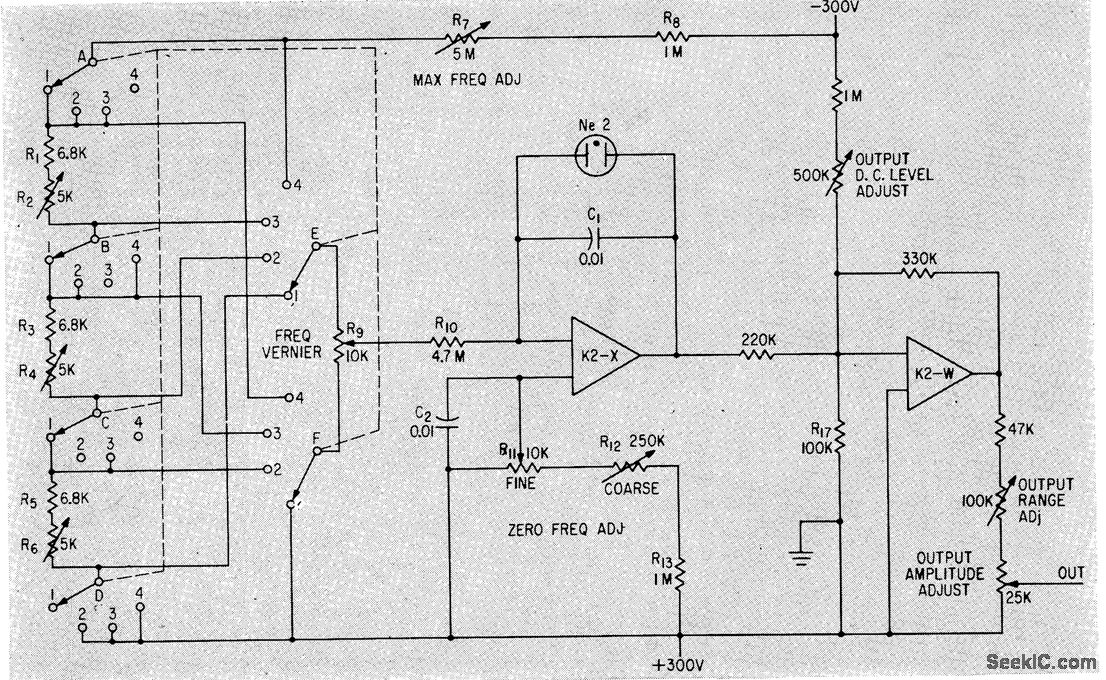

Provides low-frequency 5-V sweeps of high linearity, to complement conventional signal generators having maximum accuracy at higher sweeps.-A. Angelone, Subaudio Sawtooth Generator Gives One-Percent Linearity, Electronics, 34:48, p 42-43.
