0.1 - 3.5GHz Prescaler-2

Published:2012/11/9 20:52:00 Author:muriel | Keyword: 0.1 - 3.5GHz, Prescaler | From:SeekIC

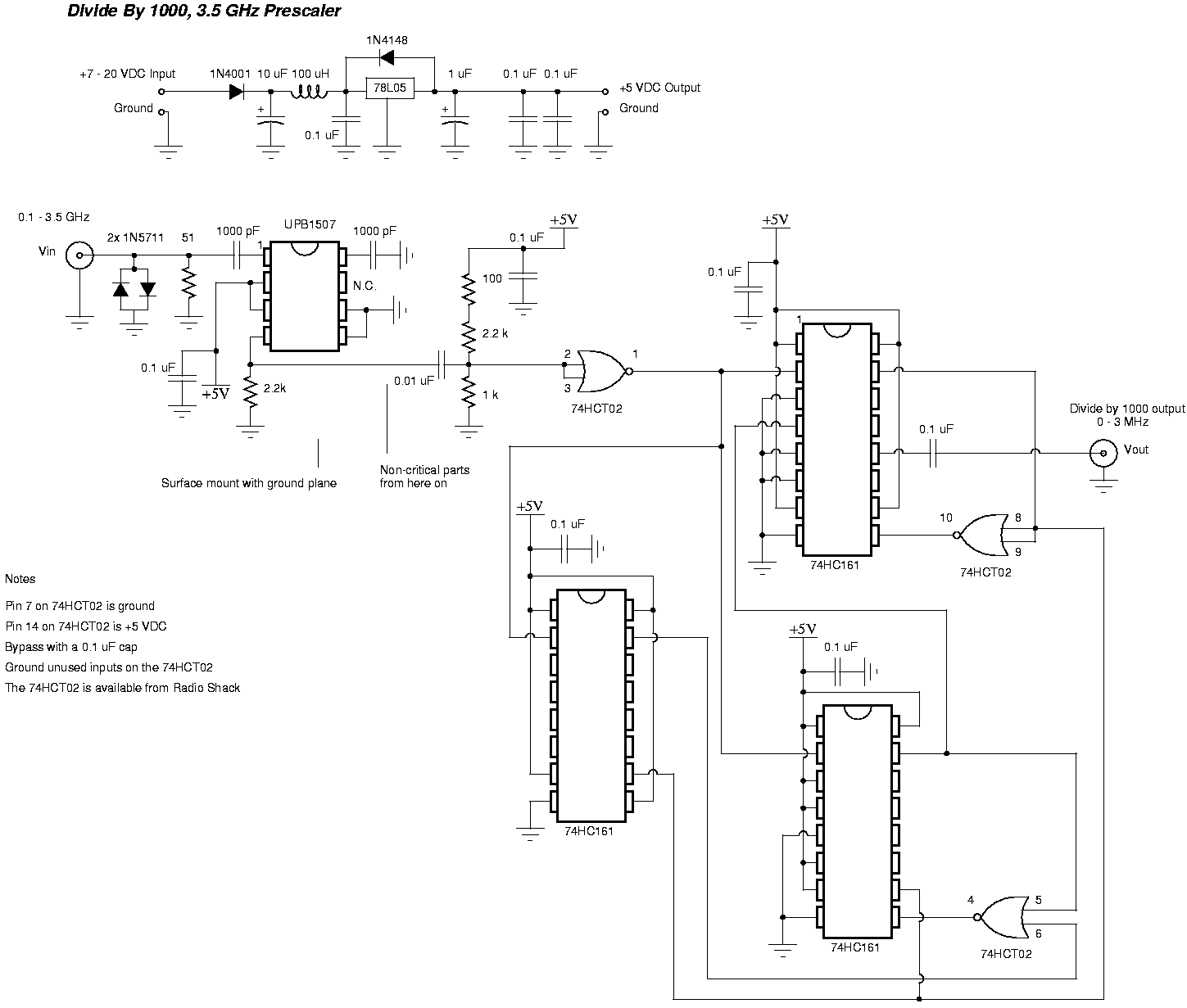

This handy prescaler divides input frequency by 1000. It takes maximum input frequency of 3.5GHz and converts it into 3.5MHz that may be measured using standard frequency meter.
