005_cps_TO_10_KC_POSITIVE_PULSES

Published:2009/7/16 21:03:00 Author:Jessie | From:SeekIC

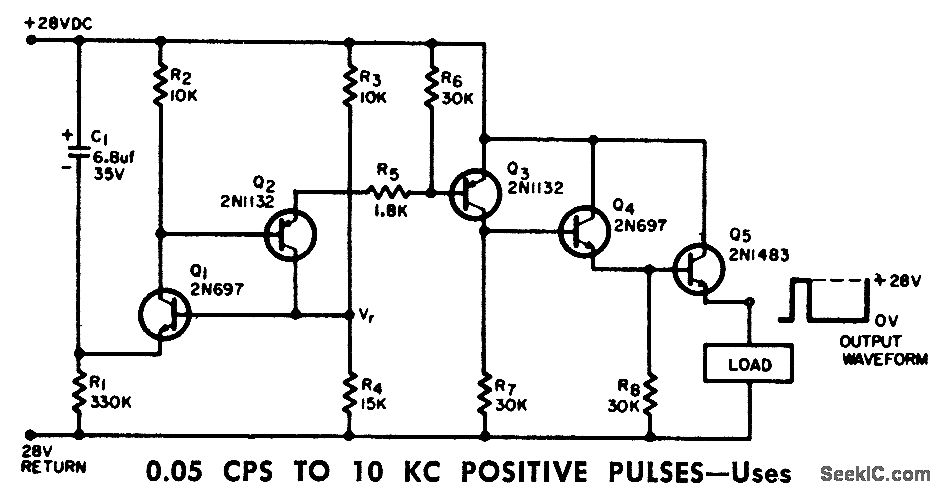

Uses two -transistor equivalent circuit for double-base diode, to give better relictbility and more uniform performance in recycling timers, indicator readouts, and switching regulators. With parameter values shown, frequency is about 1 cps and pulse width is 30 millisec.-G. B. Mahoney, Low-Frequency Pulse Generator, EEE, 12:6, p 63-64.
