Temperature sensor transmitter circuit

Published:2012/9/11 1:30:00 Author:Ecco | Keyword: Temperature sensor, transmitter | From:SeekIC

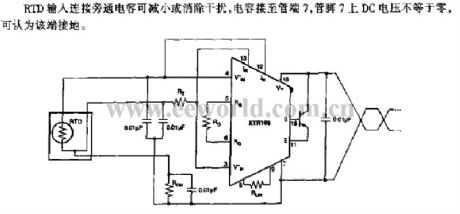

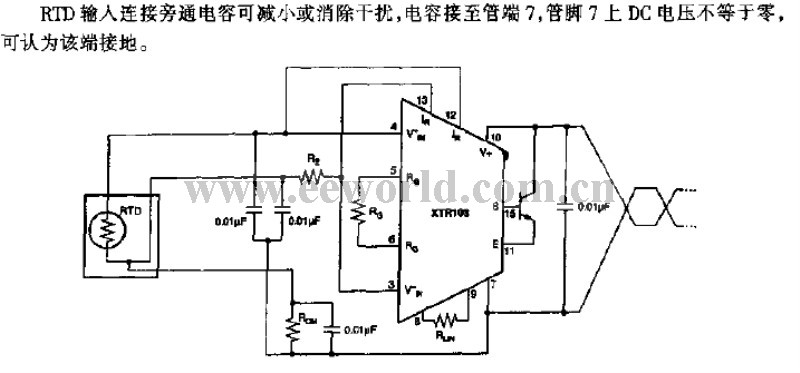

RTD input is connected to bypass capacitor to reduce or eliminate the interference. When the capacitor is connected to pin 7 of pipe, the DC voltage on pin 7 is not equal to zero, that means the pin 7 is grounded.
