TONE_BURST_GENERATOR

Published:2009/7/15 3:37:00 Author:Jessie | From:SeekIC

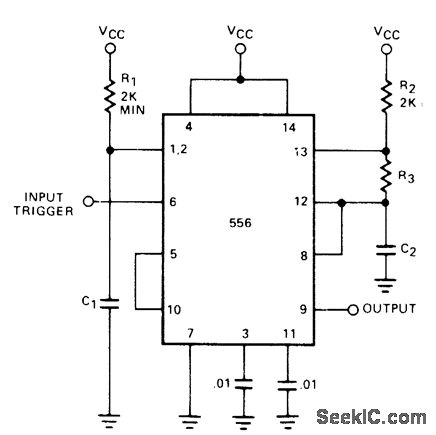

One section of 556 dual timer is connected as mono MVBR and other section as oscillator. Pulse established by mono turns on oscillator, allowing generation of AF tone burst.- Signetics Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 723-724.
