Servo Control Integrated Circuit

Published:2011/5/6 2:06:00 Author:Sharon | Keyword: Servo Control, Integrated | From:SeekIC

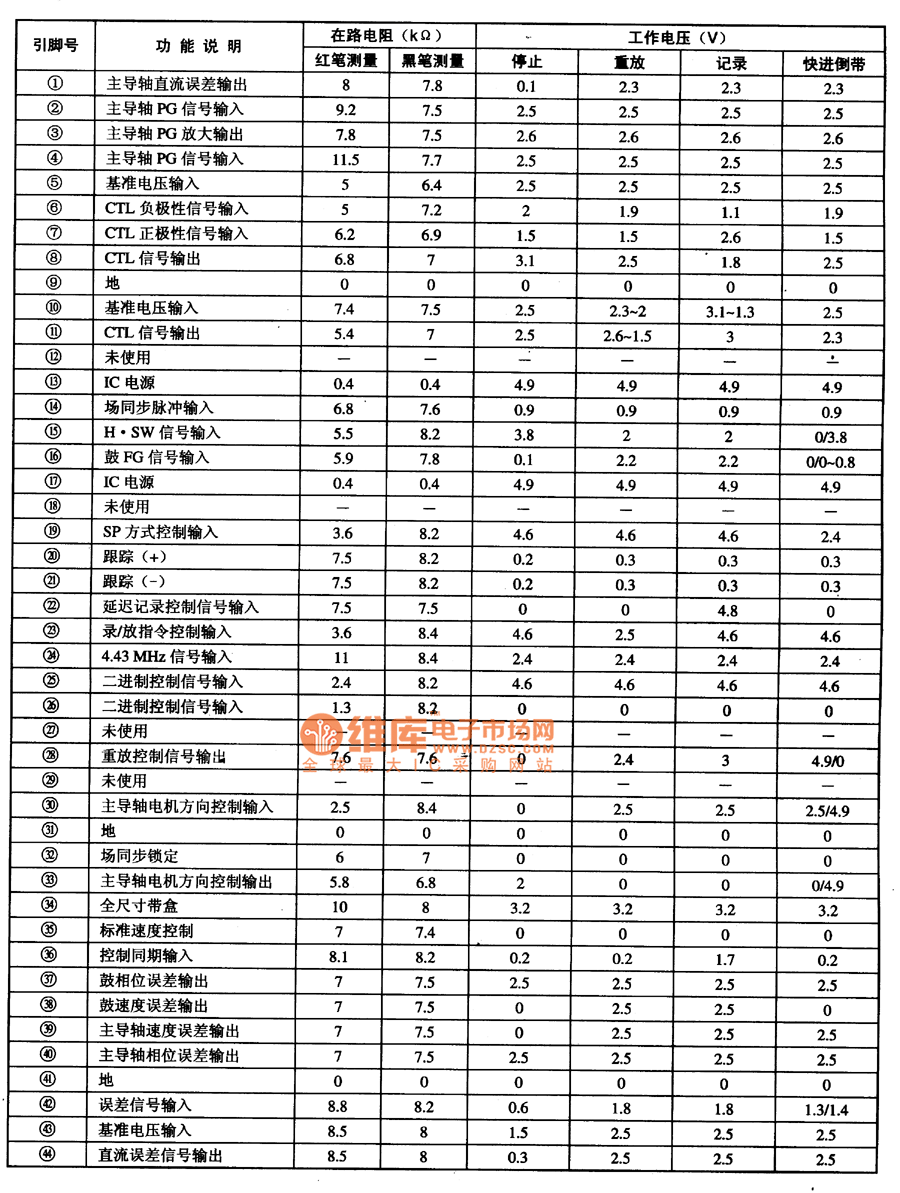

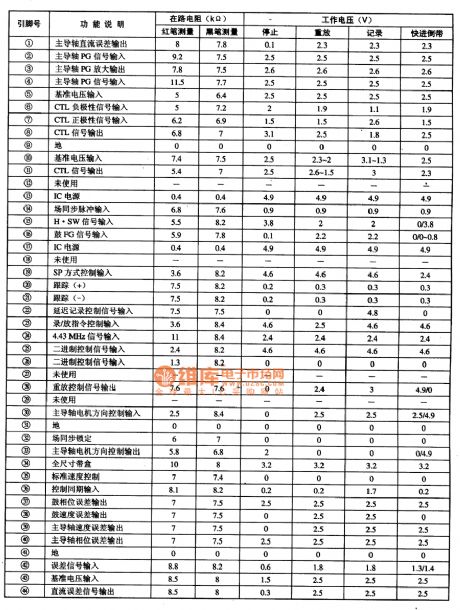

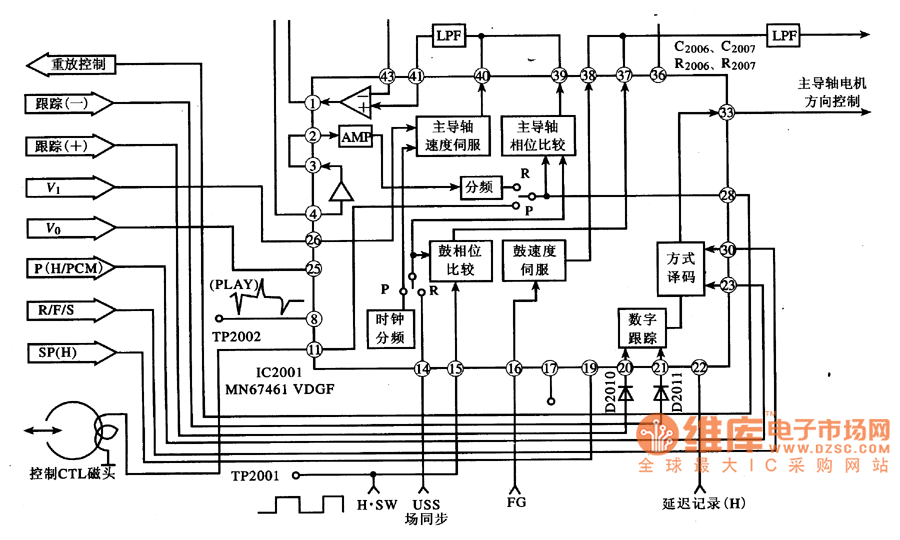

MN67641VDGF IC pin functions and data MN67461VDGF IC's internal circuit block diagram and its typical application circuit. MN67461VDGF is servo control IC produced by Panasonic company, widely used in the video camera, like the Panasonic NV-M8000 camera.1. Features. MN67461VDGF IC's internal structure is mainly made by drum phase servo, drum speed servo, capstan phase servo, working method decoder, and digital tracking circuit and other associated circuit. 2. Pin functions and data. MN67461VDGF IC is sealed in 44-pin plastic, its pin functions and data listed in Table. 3. Typical Application Circuit. MN67461VDGF IC's internal circuit block diagram and its typical application circuit as shown in the table.
