Research sensor schematic circuit

Published:2014/3/6 20:57:00 Author:lynne | Keyword: Research sensor schematic circuit | From:SeekIC

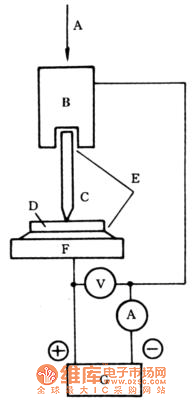

Figure: is a schematic diagram of Sensors A-adjustable pressure, B-metal needle electrode clamps, C-metal needle electrode, D-perovskite type oxide thin, E-or carbon-based conductive silver paste, F-metal a substrate, G-DC power supply.
