Oxygen sensor and PCM connection circuit diagram

Published:2011/5/11 2:03:00 Author:Nicole | Keyword: oxygen sensor, PCM connection | From:SeekIC

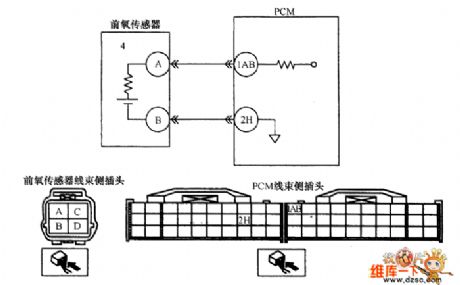

As shown in the figure, it is a oxygen sensor and PCM connection circuit. When the diagnosis instrument displays fault codes: DTCP0031、DTCP0032、DTCP0037、DTCP0038、DTCP0138 and DTCP0140, it shows that the sensor has a hitch, it should be repaired.
