Electronic Sensor Principle Circuit

Published:2011/7/20 9:23:00 Author:Robert | Keyword: Electronic, Sensor, Principle | From:SeekIC

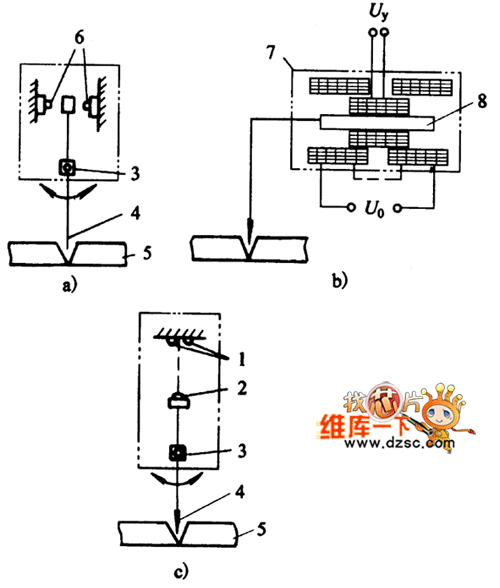

The picture shows the electronic sensor principle circuit. The picture a is mechanical-switching type. The picture b is mechanical-differential transformer type. The picture c is mechanical-optical type. The part 1 is photoelectric tube. The part 2 is LED. The part 3 is lever axis. The part 4 is tracking probe. The part 5 is workpiece. The part 6 is micro switch. The part 7 is displacement sensor. The part 8 is iron core.
