MN12C2O1D Memory Integrated Circuit

Published:2011/5/8 22:27:00 Author:Sharon | Keyword: Memory, Integrated | From:SeekIC

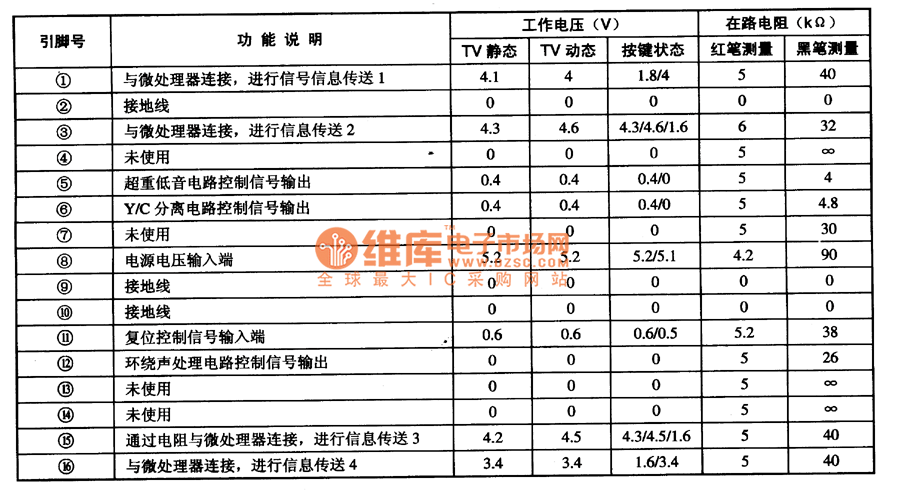

MN12C2O1D is memory integrated circuit produced by Matsushita. It usually forms large screen color TV's remote control system with MN15287KWEC31 Micro-chip integrated circuits, controlling the various functions of color TV. MN12C201D IC is in 16-pin plastic dual in-line structure. The pin functions and data are listed in Table, and the data is measured in Konka (TA8611 + TA8759) movement of color television.
